THURAYA IP VOYAGER

€6,950.00
Tax included
Quantity
Last items in stock

IP Voyager is a Plug & Play satellite terminal for vehicular use, supporting high-performance broadband data transmission up to 444 kbps.

Check coverage

Shipping policy

Terms of sale

IP Voyager is a Plug & Play satellite terminal for vehicular use, supporting high-performance broadband data transmission up to 444 kbps.

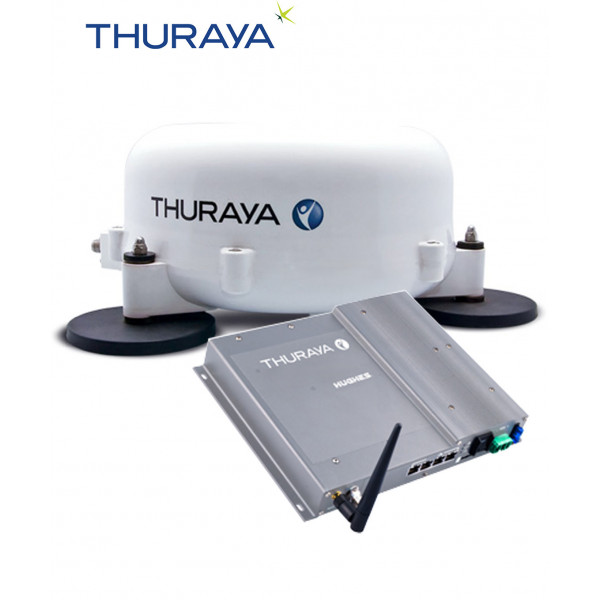

The terminal includes two components: the Control Unit - Below Deck Unit (BDU) and the vehicular antenna - Above Deck Unit (ADU).

  • The Control Unit is installed inside the vehicle. It can be horizontally or vertically mounted. It features Wi-Fi and four Ethernet ports with PoE (Power over Ethernet), supporting up to 15 W of power for each connected device.
  • The Satellite Antenna is easily mounted on the vehicle roof, using the supplied magnetic brackets. It is characterized by an internal auto-tracking system that automatically points to the Satellite.

The two components are connected by a 6 meter coaxial cable.

Thuraya IP Voyager is ideal to remain always connected through Satellite communication, even in the most remote areas, at a very competitive cost compared to other Satellite services.



TH VOY IP
1 Item

Data sheet

Category
Vehicular Solution
Operator
Thuraya
Product
Thuraya IP Voyager
Functionality
Data
Display
LED indicators
Satellite Data transmission
› Standard IP: 404/444 kbps (upload/download) › Streaming: up to 384/384 kbps (upload/download)
Power supply
10 - 32 V DC
Positioning system
GPS
Connectivity
Wi-Fi, Ethernet
Humidity
95% RH at +40 °C
Compatibility
Devices with Wi-Fi/Ethernet, Windows operating systems for software upgrade
Control unit dimensions
281x233x46 mm
Control unit wheight
2.2 kg
Control unit connectors
SIM Card, RJ45 (PoE), power supply DC, SAT - GPS (TNC), SMA, fuse
Control unit operating temperature
From -25 °C to 55 °C
Antenna environmental protection rating
IP56
Antenna operating temperature
From -30 °C to +55 °C
Antenna type
Vehicular self-calibration magnetic
Antenna dimensions
Ø 52 x h 119 mm
Antenna wheight
2.1 kg
Antenna connectors
SAT - GPS (TNC)
Coverage Area
Europe, Africa, Asia and Oceania
Further features
Package: IP Voyager control unit, antenna, Mounting kit, SAT - GPS cable (TNC) 6 m, Power supply cable, User manual, Installation manual
Delivery time
20-25 working days
