MarineStar is the Thuraya marine satellite terminal ideal for leisure maritime market and fishing boats, it is also ideal for regional merchant fleets that need a backup alternative to radio and GSM communications.
MarineStar is the Thuraya marine satellite terminal ideal for leisure maritime market and fishing boats, it is also ideal for regional merchant fleets that need a backup alternative to radio and GSM communications. Moving away from the coast, the terrestrial connectivity in no longer avaiable and the MarineStar provides voice and data communication during navigation.

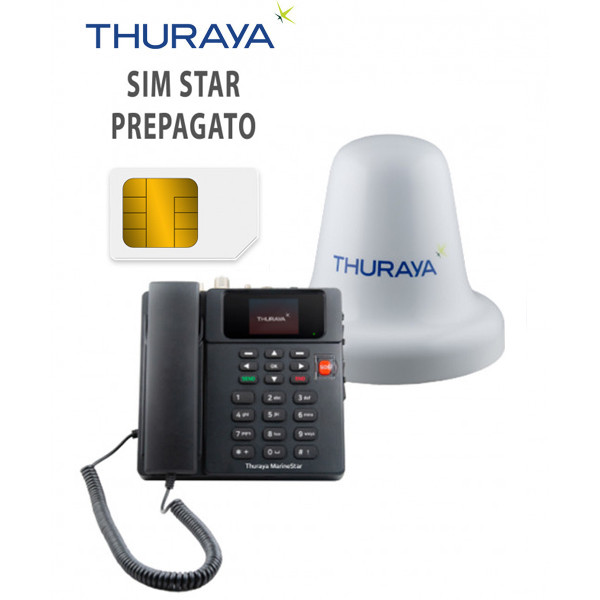

It features two easy-to-install elements: the omnidirectional satellite antenna and the Control unit with an integrated satellite telephone with a simple and intuitive interface.
The terminal complies with the international IEC 60945 standards for on-board electrical equipment; the antenna has IP66 protection rating, a high protection standard to withstand environmental agents, dusts and waves. It is possible to create Geofencing tracking and monitoring areas, with perimeter waypoints or navigation radiuses, with automatic position communication in case of exit from the tracks. The MarineStar supports voice, SMS and data connectivity in GmPRS, and different positioning systems are integrated - GPS, Glonass e BeiDou - and an SOS button, essential to communicate the GPS coordinates in case of emergency.
The GmPRS Data transmission (60/15 kbps download/upload) is only possible by connecting the device via the RS232 serial connector.
TH M MS SP
3 Items
Data sheet
Category
Thuraya maritime satellite solution
Operator
Thuraya
Product
Thuraya MarineStar
Functionality
Voice, SMS and data
Satellite Data transmission
Only via RS232 serial connector › GmPRS 60/15 kbps (download/upload)
Power supply
10.8 - 31.5 V DC
Positioning system
GPS, BeiDou, Glonass
Connectivity
RS232 serial connector
Connectors
SIM Card, RJ11, RS232, Mini USB, power supply DC, audio 3.5 mm, SAT (N), GPS (TNC), GPIO, NMEA
Humidity
From -15 °C to +55 °C
Compatibility
Windows operating systems for software upgrade
SOS Button
Emergency SMS to a predefined number
Control unit dimensions
203x190x72.7 mm
Control unit wheight
1.07 kg
Control unit operating temperature
From -15 °C to +55 °C
Antenna environmental protection rating
IP66
Antenna operating temperature
From -25 °C to +55 °C
Antenna type
Marine omnidirectional
Antenna dimensions
Ø 185 x h 170 mm
Antenna wheight
1.3 kg
Coverage Area
Europe, Africa, Asia and Oceania
Delivery time
20-25 working days
Package
MarineStar: control unit, satellite antenna, Mounting kit, GPS cable (TNC) 25 m, SAT cable (N) 25 m, Power supply cable (power supply not included), Installation manual, User manual
