INMARSAT SAILOR FB 500 AND POSTPAID SIM
Inmarsat Sailor FB 500 the ideal marine satellite terminal for medium and large boats.
Sailor FB 500 the Inmarsat marine satellite terminal ideal for medium and large boats.

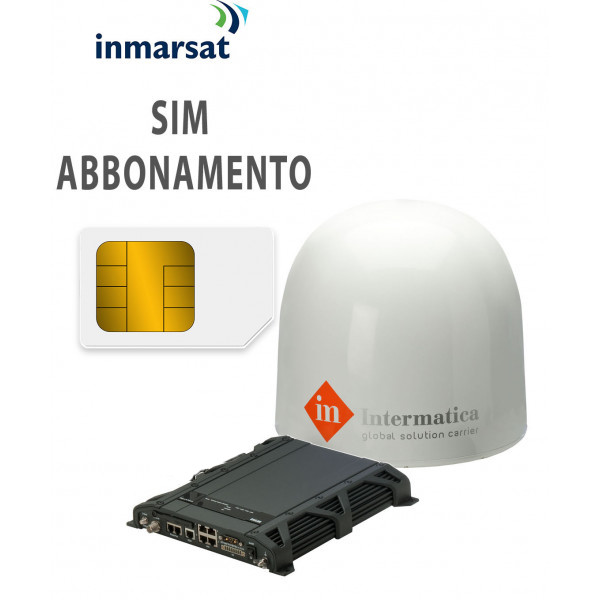

It has three easy-to-install elements: the self-pointing gyroscopic satellite antenna, the control unit, the IP phone.
The antenna has IPX6 degree of protection, a high standard for resisting water waves.
The Sailor FB 500 allows voice communications, SMS and broadband data connectivity up to 432 kbps in Standard IP mode and up to 256 kbps in Streaming mode, has an integrated GPS navigation system and provides the free 505 Emergency Calling service for contact the MRCC - Maritime Rescue Coordination Center by phone.
Voice transmission takes place via the telephone connected to the control unit with RJ45 cable.
It is the ideal terminal for those who need, in sailing the seas, for voice communications and broadband data transmission.
Data sheet
- Category
- Inmarsat maritime satellite solution
- Operator
- Inmarsat
- Product
- Inmarsat Sailor FB 500 and postpaid SIM
- Functionality
- Voice, SMS and data
- Display
- LED indicators - 240x320 pixels 2.2 inches, TFT, LCD colors
- Satellite Data transmission
- Standard IP 432/432 kbps (download/upload) e Streaming fino a 256/256 kbps (download/upload); ISDN 64/64 kbps (download/upload)
- Power supply
- 10 - 32 V DC
- Positioning system
- GPS
- Connectivity
- Ethernet
- Connectors
- SIM Card, RJ45 (PoE), RJ11, DC power supply, SAT - GPS (TNC), SMA, I / O
- Operating temperature
- From -25 °C to +55 °C
- Humidity
- 95% RH to +40 °C
- Compatibility
- Windows and Mac operating systems
- Control unit dimensions
- 273x264,5x42,5 mm
- Control unit wheight
- 2.5 kg
- Antenna environmental protection rating
- IPX6
- Telephone dimensions
- 152x55x26 mm
- Telephone wheight
- 170 g
- Antenna type
- Self-pointing gyroscopic marine
- Antenna dimensions
- Ø 687 x h 797,5 mm
- Antenna wheight
- 19 kg
- Coverage Area
- Worldwide excluding poles
- Delivery time
- 15-20 working days
- Package
- Sailor FB 500 control unit, antenna, 30 m SAT - GPS cable (TNC), power cable, Ethernet cable, driver and software CD, user manual
